KD Pocket Door Frame Kits

SPACE-SAVING. HEAVY-DUTY. VERSATILE.

Pocket doors are an ideal solution for adding privacy in areas where space is limited. Unlike traditional hinged doors, they eliminate the need for swing clearance.

The pocket door system installs directly into the wall cavity, allowing the door to slide smoothly on high-quality rollers along a concealed header track—disappearing completely into the wall when open.

While similar in concept to barn doors, pocket doors offer a key advantage: the wall space on both sides remains fully usable for furniture placement or wall décor.

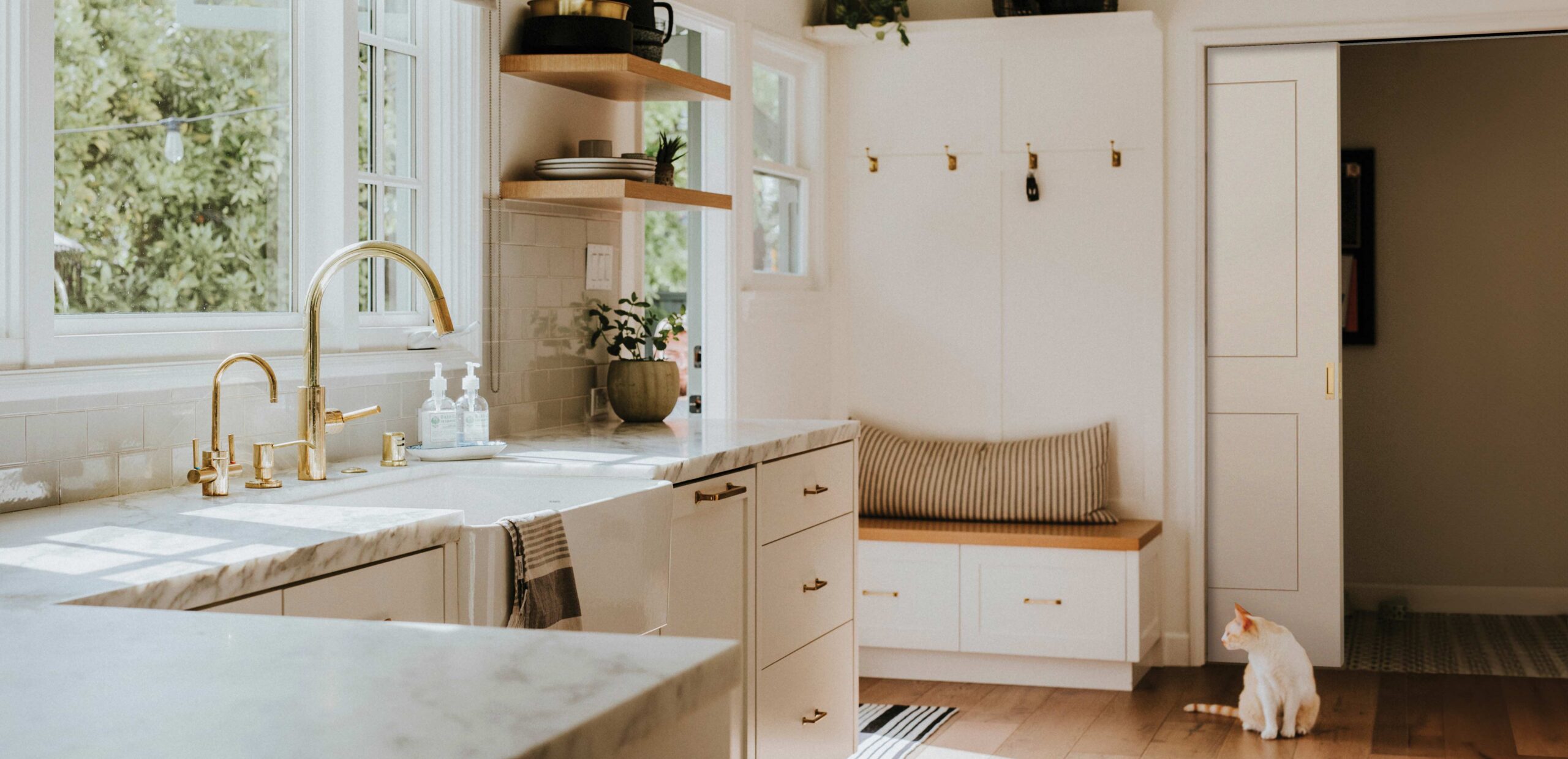

LDI_Elemental-2-Panel_Kitchen-CMYK-Flat
POCKET DOOR FRAMES AND HARDWARE
  • In-stock for 2x4 and 2x6 wall constructions
  • Complete kit engineered to support up to 200 lbs.
    Meets standard and heavy-duty applications
  • 1" diameter thermoplastic 3-wheel nylon ball bearing wheels for easy roll action
  • 3'0" and 4'0" header options with clearly defined embossed markings for cut down up to 2'0" wide
  • In-stock 6'8"* and 8'0" height (7'0"** cut down from 8'0")
  • Clear zinc finish hardware is more environmentally friendly than brushed brass dichromate
  • Jump proof aluminum box track
  • Easy to install metal quick release hanger clip
  • Easy to adjust hanger heights
    (+/- 1.25" / 3,18 cm)
  • Available options:
    • Soft Close Kit
    • Adapter Kit for 1-3/4" thick doors (2x4 wall only)
    • Converging Door Kit (double door openings)

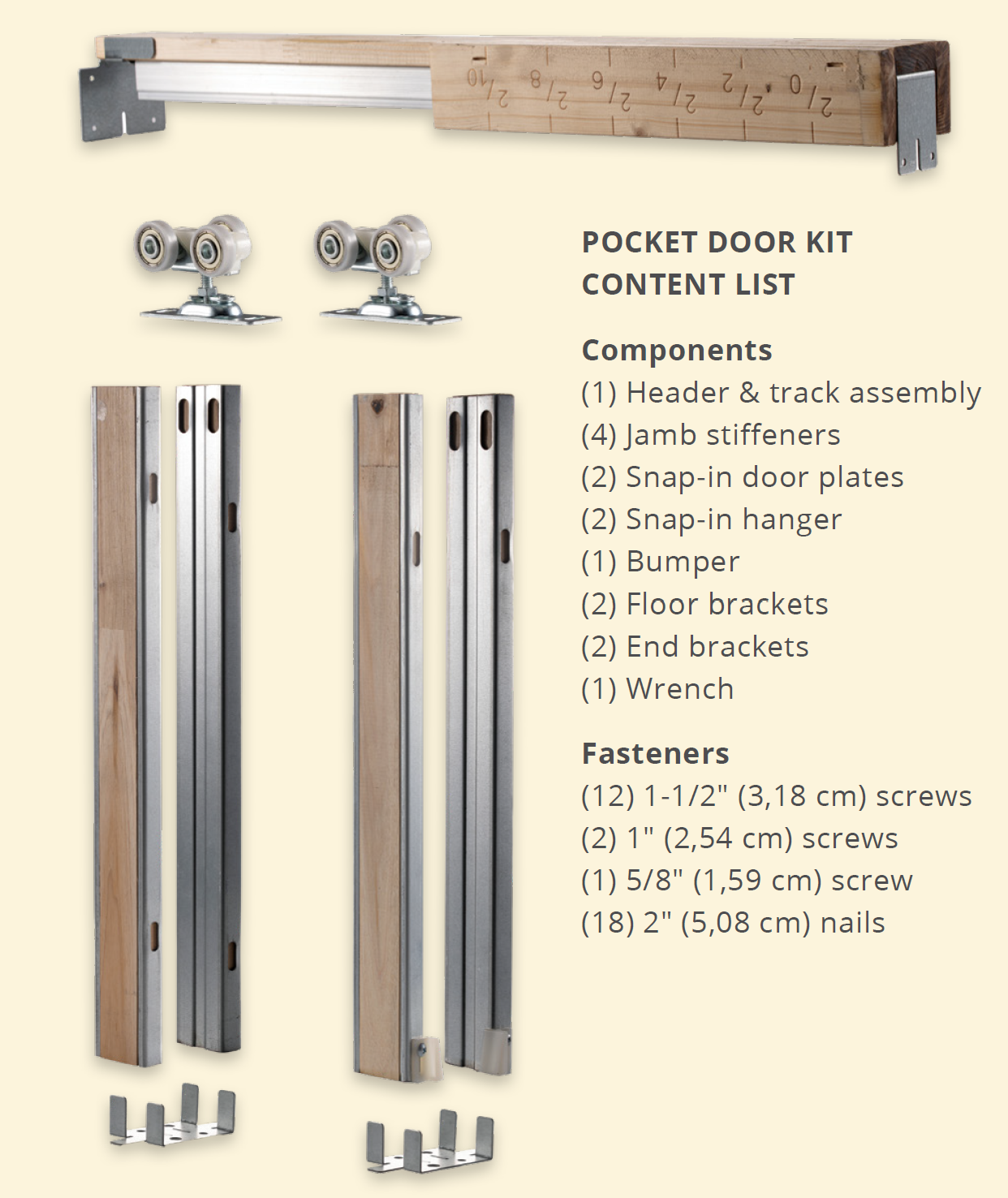

KD Pocket Door Kit components

* For 6'8" doors wider than 3'0" cut down 8'0" frames -16" in height to fit 84-1/2" rough opening
** For 7'0" high doors cut down 8'0" frames -12" in height to f it 88-1/2" rough opening
